Mechanical Tank Level Indicator

Description

Mechanical Tank Level Indicator – Durable and Reliable Float-Based Solution

SAVEL Mechanical Tank Level Indicators offer a robust and cost-effective solution for precise, power-free liquid level measurement across industries such as petroleum, chemical processing, food, and water treatment. Designed for durability and long-term reliability, these indicators can also be integrated into automation systems via optional 4-20mA transmitters.

Product Description

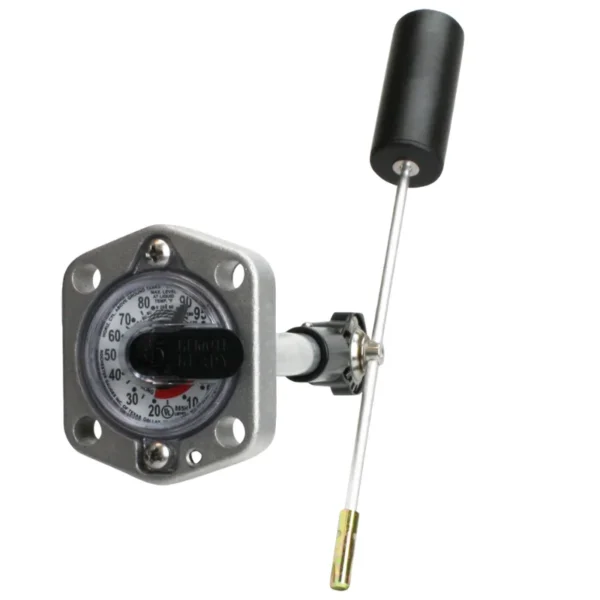

SAVEL’s float-based mechanical level indicators function through a float and lever mechanism that rises and falls with the liquid level, providing accurate, real-time measurement without the need for electrical power. The system is available in stainless steel (316 SS), PVC, or PP materials, ensuring excellent corrosion resistance and suitability for demanding environments.

With a measuring range of 500 mm to 3000 mm (customizable) and pressure resistance up to 10 bar, the indicator is built for both standard and specialized tank applications. For enhanced functionality, the system can be equipped with a 4-20mA transmitter, enabling seamless integration into SCADA or PLC systems for remote monitoring and automation.

Key Features

✅ Measurement range: 500 mm – 3000 mm (custom configurations available)
✅ Operating pressure: up to 10 bar
✅ Temperature range: -40°C to +70°C
✅ Material options: 316 stainless steel, PVC, PP
✅ Communication: optional 4-20mA transmitter for SCADA/PLC integration
✅ Maintenance-free operation: no electronics, no risk of electrical failure

Advantages

✔ High measurement accuracy via float mechanism
✔ Cost-effective and long-lasting compared to electronic sensors
✔ Resistant to harsh chemicals and demanding conditions
✔ Easy integration into automation systems with optional transmitter
✔ Suitable for hazardous and non-hazardous environments

Typical Applications

✔️ Petroleum and gas storage tanks
✔️ Chemical process tanks
✔️ Water treatment plants
✔️ Food and pharmaceutical industry tanks

Contact SAVEL for Mechanical Tank Level Indicator Solutions

Enhance your tank monitoring systems with SAVEL’s reliable and durable mechanical level indicators. Contact us today for specifications, pricing, or custom solutions.
